Introduction

The Task API enables external systems to create a task against an existing form. This functionality will allow all current options available to Tasks to be leveraged by external systems. The Task API will receive the required data to create a task against a form and the data fields of the requested form.

Task API Setup Information

Getting Started

All API requests require an authorization token – reference our Authentication page for more information

API Structure

POST api/integration/CreateTask

Required Request Parameters

Name	Location	Description
Authorization token	Header	See Login Authentication page documentation
TaskName	Body	Task name of the task
FormID	Body	FormID or FormRef (FormName either one is mandatory, Form ID to take precedence in case both are provided
FormRef	Body	FormID or FormRef (FormName either one is mandatory, Form ID to take precedence in case both are provided
LocationID	Body	LocationID or LocationName Either one is mandatory – Location ID to take precedence in case both are provided
LocationName	Body	LocationID or LocationName Either one is mandatory – Location ID to take precedence in case both are provided
WorkgroupName	Body	Workgroup assigned to the task
FormDetails	Body	Empty string can be used ":[]" if no values are predefined for the task

Optional Request Parameters

Name	Location	Description
ResourceName	Body
DueBy	Body	In case due by date provided then use Tenant time zone. Field must be set to a valid date, format MM-DD-YYYY
IANATimezone	Body	If NOT included the time zone defaults to the tenant default time zone. Accepted time zone values are referenced below.
TaskExpiration	Body	If provided the task expiration date will be calculated based on the past due date and the task expiration settings (ExpirationIntervalValue and ExpirationIntervalType). Example: "DueBy": { "DueByDate": "08/20/2021 16:40", "IANATimezone": "US/Central" }, "TaskExpiration": { "ExpirationIntervalValue": "2", "ExpirationIntervalType": "Day" } In this case, TaskExpirationDate will be, "08/22/2021 16:40" Valid ExpirationIntervalType are: Never, Day, Week, Month, Year
Note	Body

Request JSON

{
  "Data": {
    "TaskSummaryDetail": [
      {
        "TaskName": "TaskName",
        "FormRef": {
          "Id": null,
          "Name": "OEE - Batch Initialization"
        },
        "Resource": {
          "Id": null,
          "Name": "Garden Salad"
        },
        "Location": {
          "Id": null,
          "Name": "USA - Salinas"
        },
        "Workgroup": {
          "Id": null,
          "Name": "OEE"
        },
        "DueBy": {
          "DueByDate": "02/22/2020 10:40",
          "IANATimezone": "US/Central"
        },
        "Note": "Add Note",
        "TaskData": {
          "FormDetails": [
            {
              "ShortName": "BatchID",
              "Value": "BPCharred02222020"
            }
          ]
        }
      }
    ]
  },
  "Operation": "Insert",
  "Status": true,
  "Errors": null,
  "RefreshToken": false,
  "PartialSuccess": false
}

Request JSON Multiple Example

{
    "Data": {
        "TaskSummaryDetail": [
            {
                "TaskName": "TaskName_POTask100",
                "FormRef": {
                    "Id": null,
                    "Name": "Receiving Inspection Form"
                },
                "Resource": {
                    "Id": null,
                    "Name": "FT12345"
                },
                "Location": {
                    "Id": null,
                    "Name": "New York, NY"
                },
                "Workgroup": {
                    "Id": null,
                    "Name": "Food Safety"
                },
                "DueBy": {
                    "DueByDate": "03/15/2020 08:00",
                    "IANATimezone": "US/Eastern"
                },
                "Note": "Add Note",
                "TaskData": {
                    "FormDetails": [
                        {
                            "ShortName": "INT_PO Number",
                            "Value": "123456Test100"
                        },
                        {
                            "ShortName": "INT_Vendor Name",
                            "Value": "Best Produce"
                        },
                        {
                            "ShortName": "INT_Lot Number",
                            "Value": "9999872"
                        },
                        {
                            "ShortName": "INT_Country of Origin",
                            "Value": "Mexico"
                        },
                        {
                            "ShortName": "INT_USDA Inspection?",
                            "Value": "Yes"
                        },
                        {
                            "ShortName": "INT_Receiving Quantity",
                            "Value": "100"
                        }
                    ]
                }
            },
            {
                "TaskName": "TaskName_POTask101",
                "FormRef": {
                    "Id": null,
                    "Name": "Receiving Inspection Form"
                },
                "Resource": {
                    "Id": null,
                    "Name": "FT12345"
                },
                "Location": {
                    "Id": null,
                    "Name": "New York, NY"
                },
                "Workgroup": {
                    "Id": null,
                    "Name": "Food Safety"
                },
                "DueBy": {
                    "DueByDate": "03/16/2020 08:00",
                    "IANATimezone": "US/Eastern"
                },
                "Note": "Add Note",
                "TaskData": {
                    "FormDetails": [
                        {
                            "ShortName": "INT_PO Number",
                            "Value": "123456Test101"
                        },
                        {
                            "ShortName": "INT_Vendor Name",
                            "Value": "Best Produce"
                        },
                        {
                            "ShortName": "INT_Lot Number",
                            "Value": "9999872"
                        },
                        {
                            "ShortName": "INT_Country of Origin",
                            "Value": "Mexico"
                        },
                        {
                            "ShortName": "INT_USDA Inspection?",
                            "Value": "Yes"
                        },
                        {
                            "ShortName": "INT_Receiving Quantity",
                            "Value": "100"
                        }
                    ]
                }
            }
        ]
    },
    "Operation": "Insert",
    "Status": true,
    "Errors": null,
    "RefreshToken": false,
    "PartialSuccess": false
}

Request JSON with Expiration Date

{
  "Data": {
    "TaskSummaryDetail": [
      {
        "TaskName": "Task123456-03102021",
        "FormRef": {
          "Id": "",
          "Name": "Receiving Form"
        },
        "Resource": {
          "Id": "",
          "Name": "Garden Salad"
        },
        "Location": {
          "Id": "",
          "Name": "New York, NY"
        },
        "Workgroup": {
          "Id": "",
          "Name": "Category Manager"
        },
        "DueBy": {
          "DueByDate": "04/20/2021 16:40",
          "IANATimezone": "US/Central"
        },
        "Note": "Add note",
        "TaskData": {
          "FormDetails": []
        },
        "TaskExpiration": {
          "ExpirationIntervalValue": "2",
          "ExpirationIntervalType": "Week"
        }
      }
    ]
  },
  "Operation": "Insert",
  "Status": true,
  "Errors": null,
  "RefreshToken": false,
  "PartialSuccess": false
}

Response Parameters

Name	Description
RequestID	Use this GUID within our GetBatchStatus API to request updates on when the request will be processed outside of the UI. See Request Status API documentation for more information on GetBatchStatus.
RequestStatus	If no syntax errors are present the default response is Pending until the request can be processed.
RequestError	Error object providing information if an error occurs
Status	Indicating the success of the API request
Errors	Returns null if no errors are encountered
RefreshToken	Returns false

Response JSON

{
  "RequestId": "5b0d5b9e-dcff-4a18-b90d-dedf44dc6231",
  "RequestStatus": "Pending",
  "RequestError": null,
  "DetailedError": null,
  "Status": true,
  "Errors": null,
  "RefreshToken": false
}

Task Scheduler and Task Inbox

Tasks are visible in the Task tab or in the Task Scheduler Inbox, tasks create with the CreateTask API are not visible on the task scheduler.

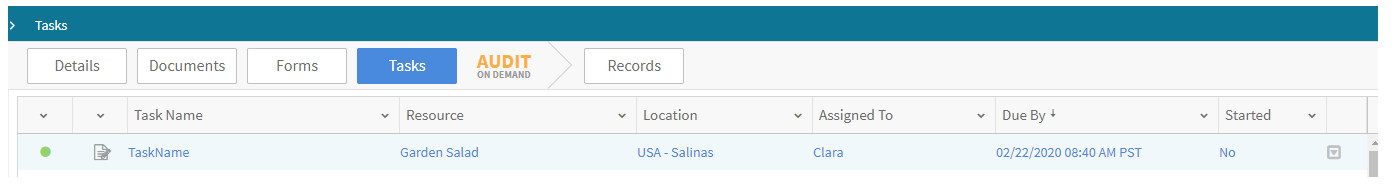

Tasks Screen

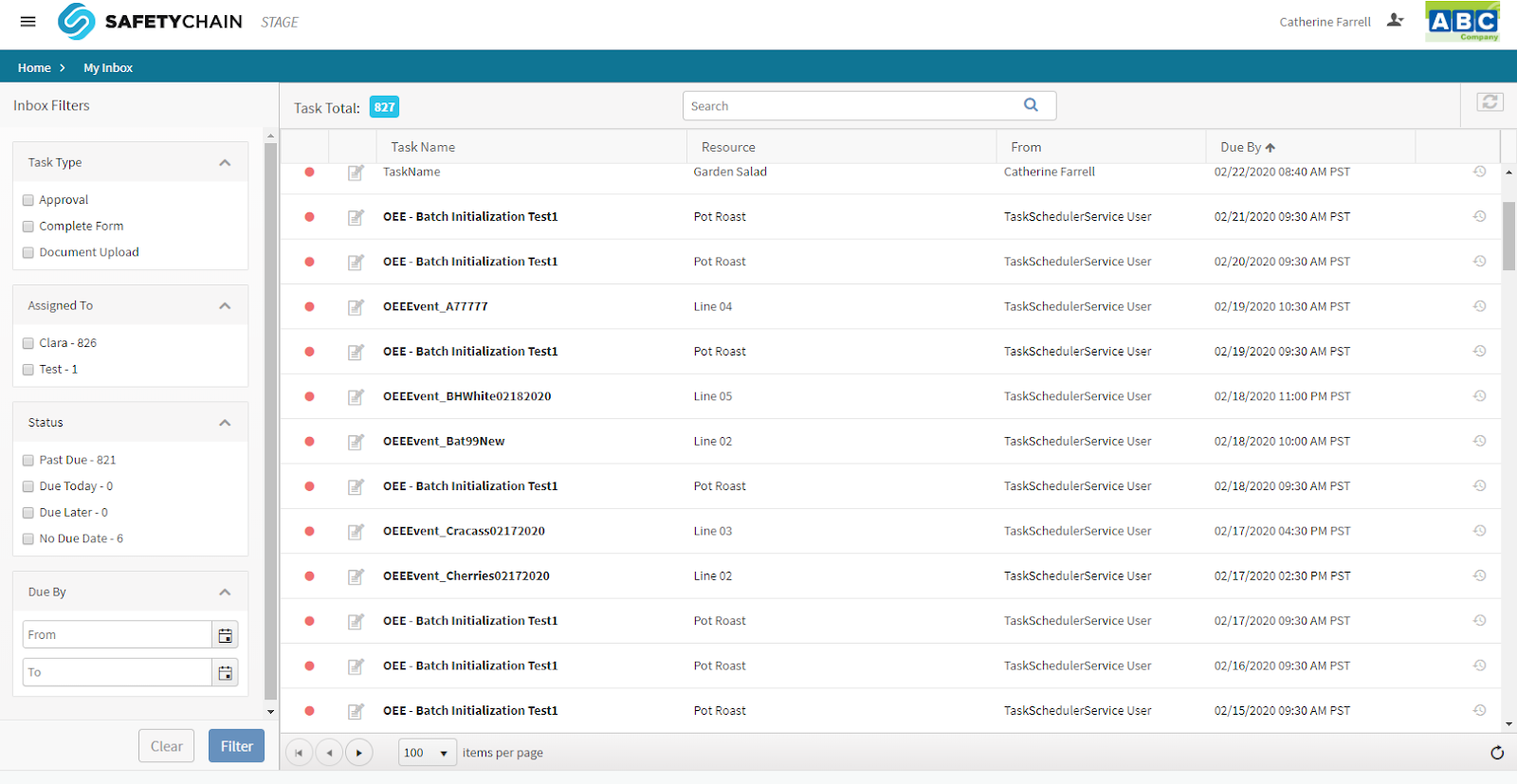

Task Scheduler Inbox
